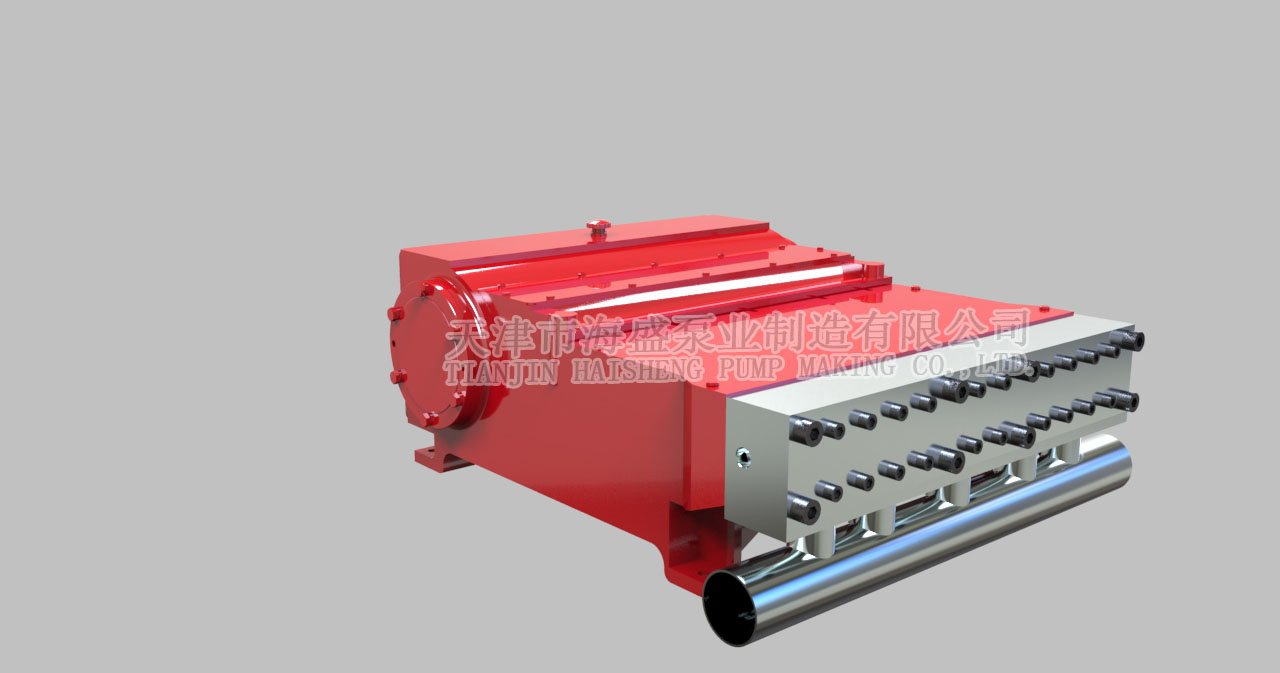

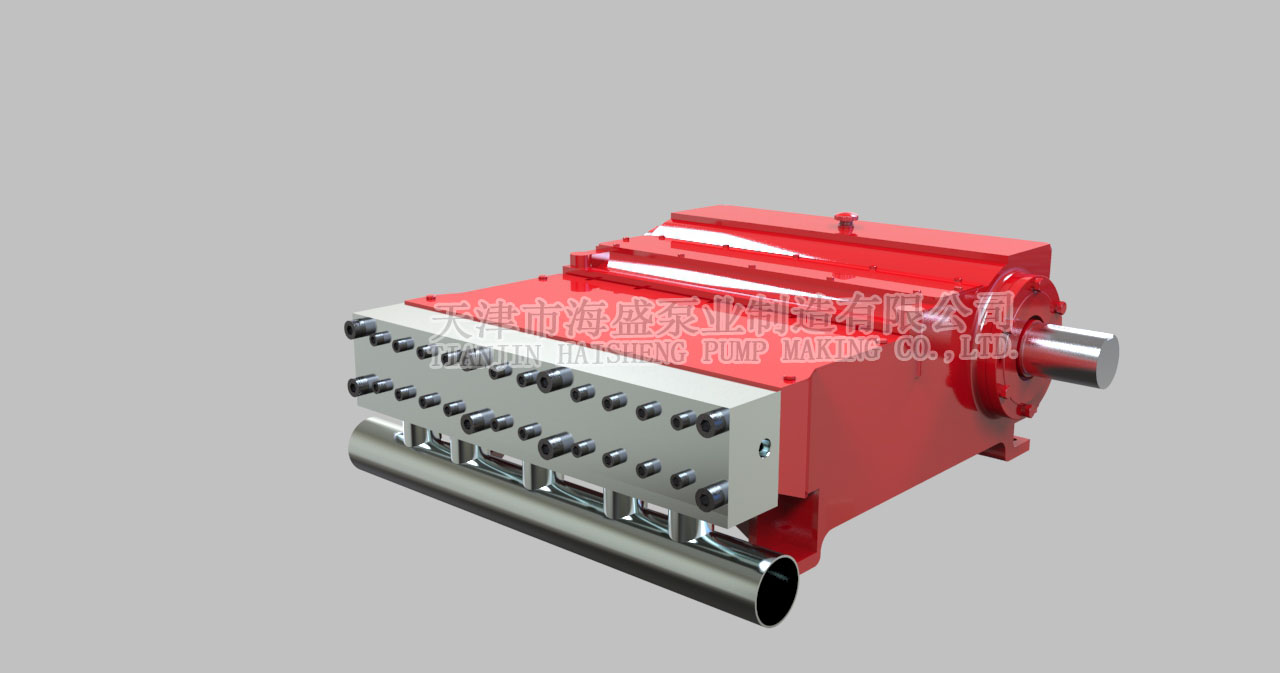

Type HW500

    Input and output water valve device of the pump is designed for one integrated set in horizontal direction. The output valve core can be used as input directing part. There is only one spring for both input and output valves, so the structure is compact and simple, easy to dissemble. It has also the properties of small flow loss, stable operation and low noise. The max.crankshaft thrust force is 125KN.

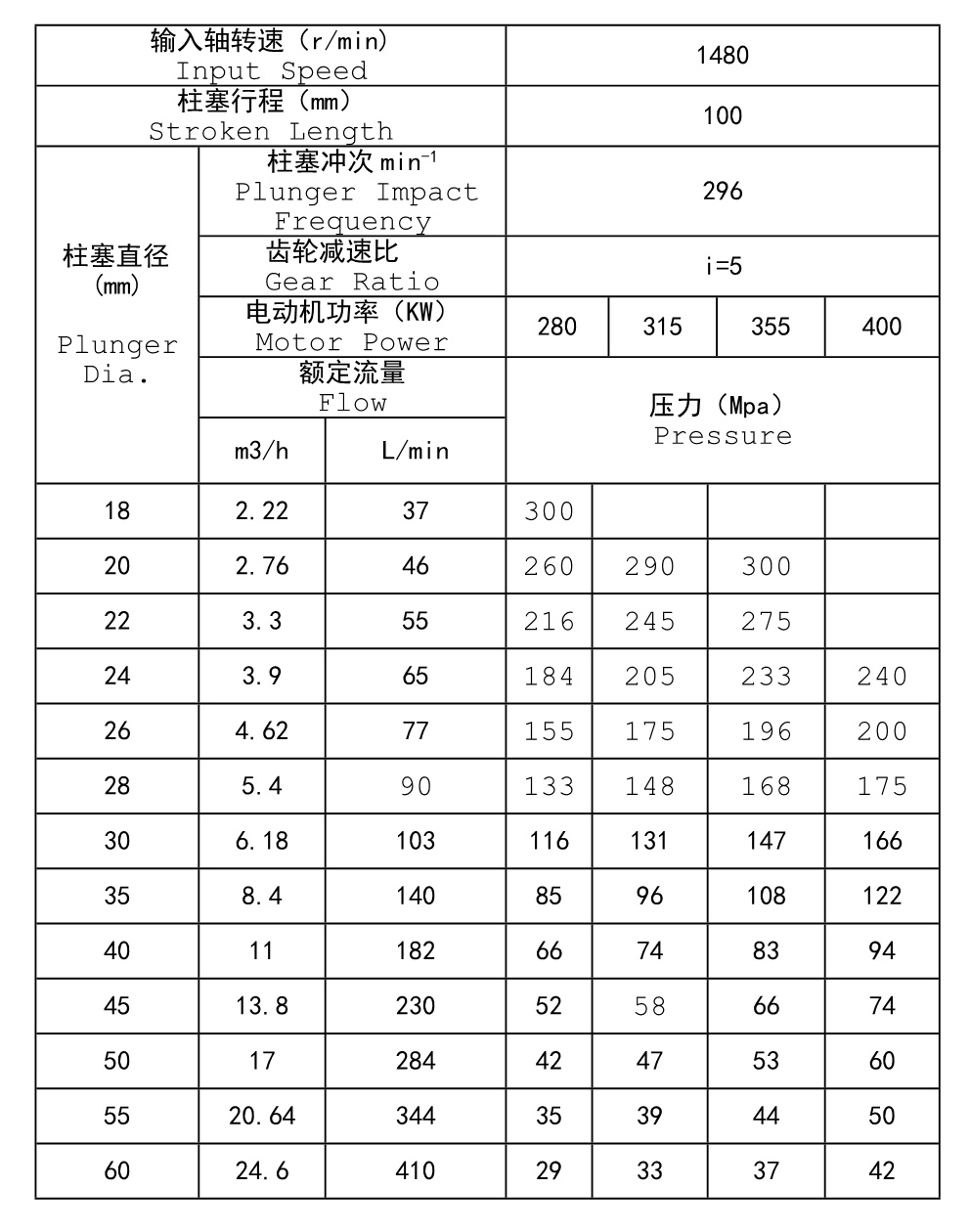

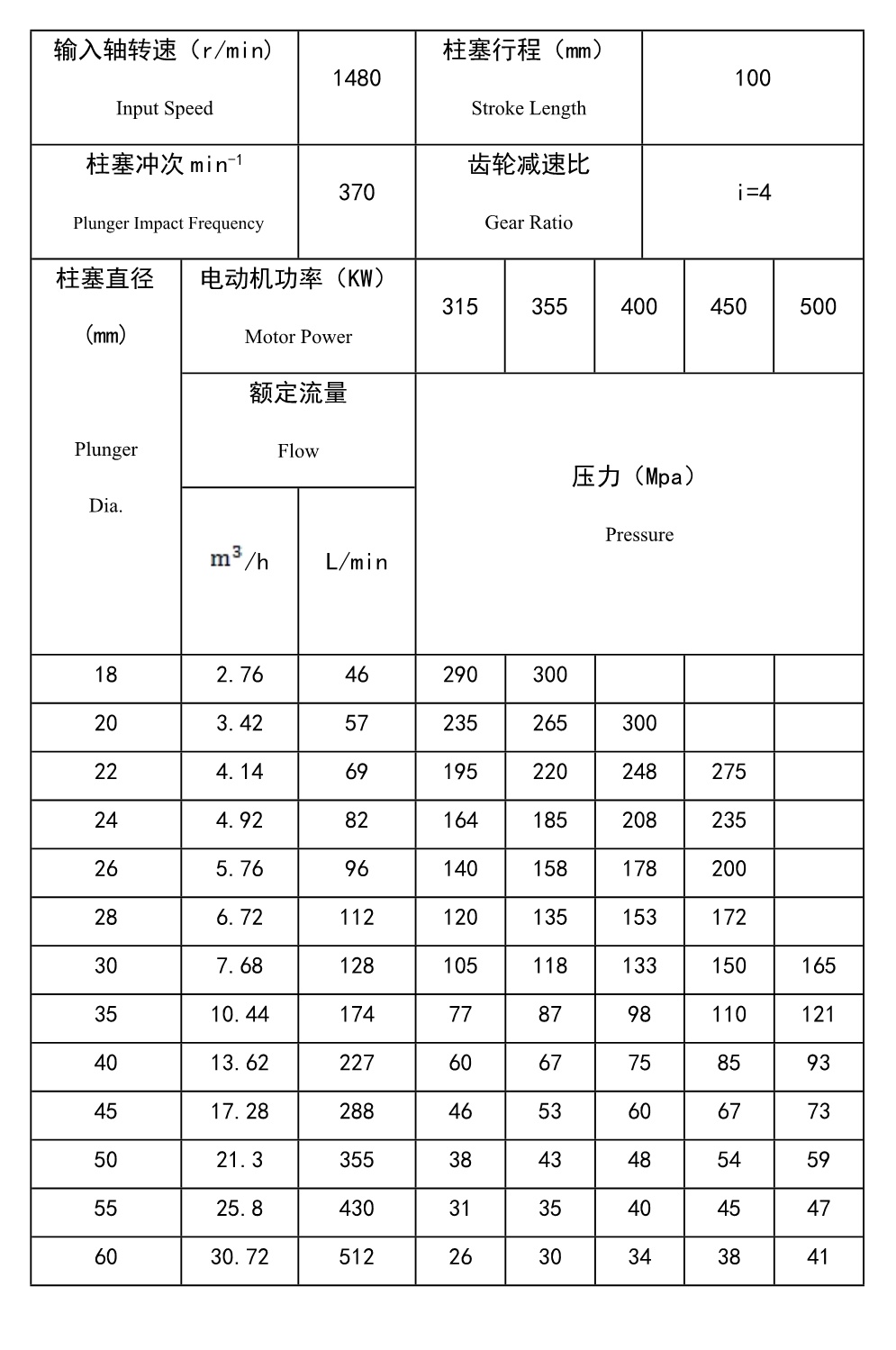

                                                                                                                                           Technical Data
